Smoke System 8.0H

• Rated for 18g
• 12v or 24v power ok
• Suitable for all aircraft
• Pump flow: 1.8 +/- GPM
• Spray rate: 0.8 +/- GPM
• Adjustable with incl valve
• Tank capacity: 8.0 gallons

• Total run time: 10+/- minutes
• Typical installation time: 1 day
• Ready for External Fill Kit option
• Engineered for continuous inverted flight
• Tank and pump easily removed and re-installed
• Strong monolithic tank construction (no seams)
• See successfully earned FAA Field approvals here
• Oil level quickly & easily determined (tank is transparent)


INCLUDES EVERYTHING NEEDED:

• Oil filter

• Electronics
• Check valve
• Suction hose
• Piston injector (1)
• Pressure hose (10')
• Stainless steel hose (3')

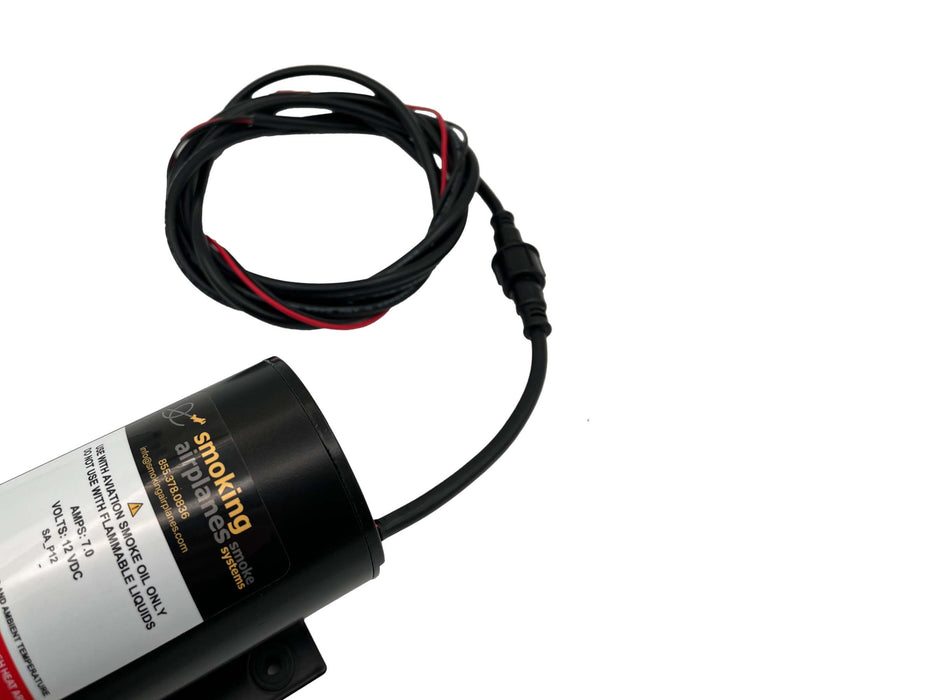

• 12v pump (& 24v to 12v converter)

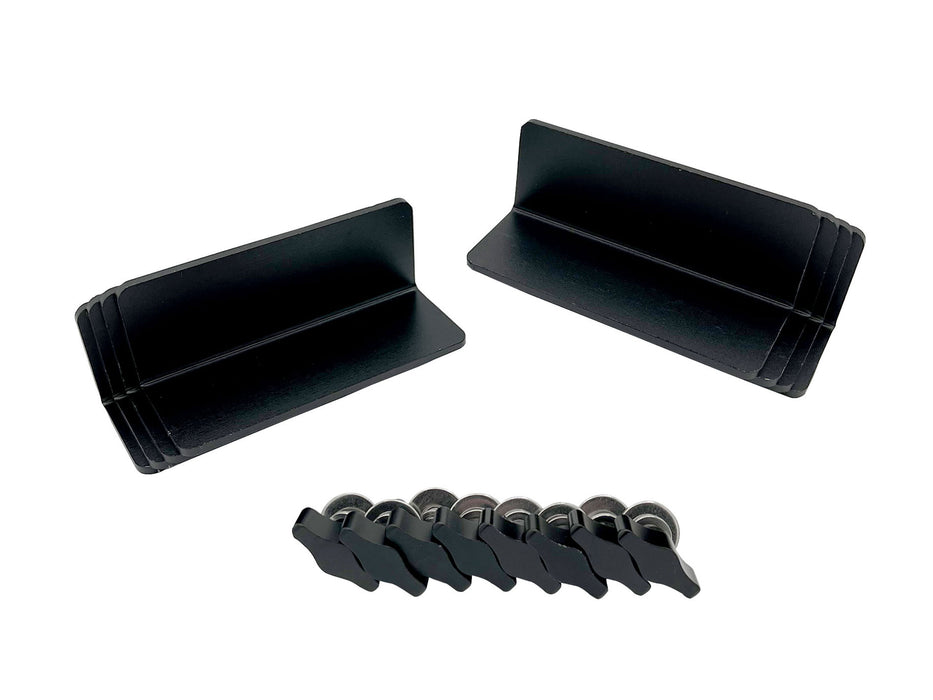

Note: Fasteners for attaching brackets to aircraft not included

DIMENSIONS:

• Pump height: 4"
• Horizontal tank, without pump: 18″ x 11.25″ x 12.5″ (LxWxH)
  • This includes the height of fittings on top of tank

WEIGHT:

• Smoke System (full): 95 lbs
• Smoke System (empty): 28 lbs

Note: Weight increases if option(s) are added.
