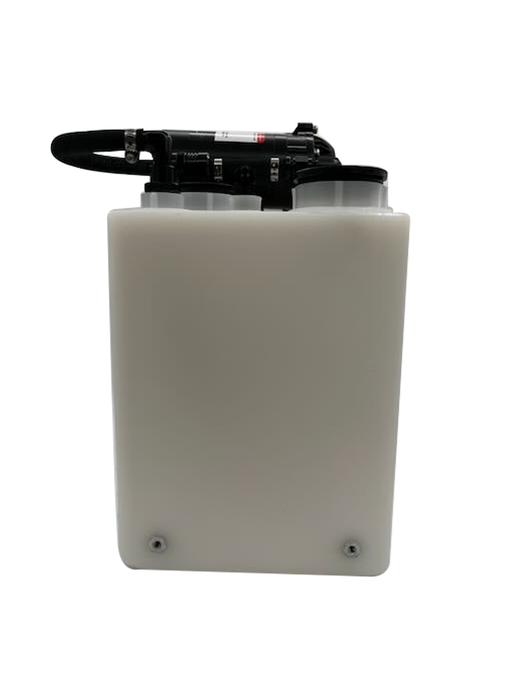

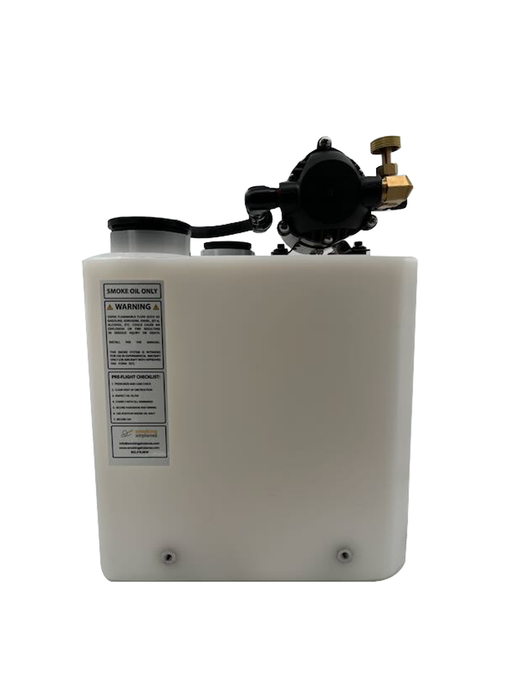

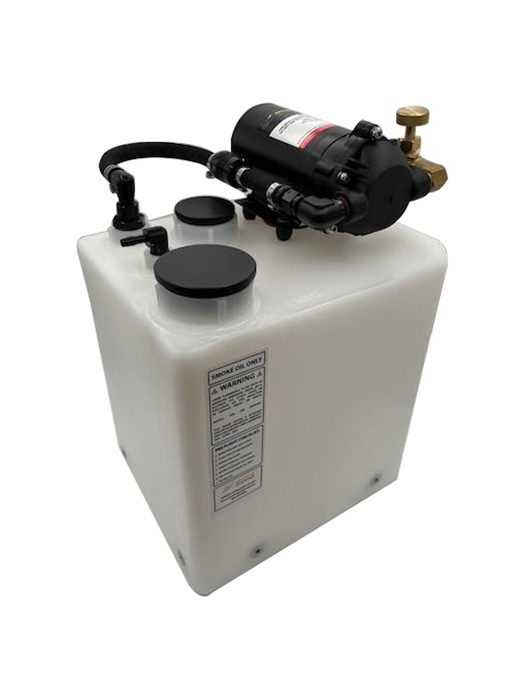

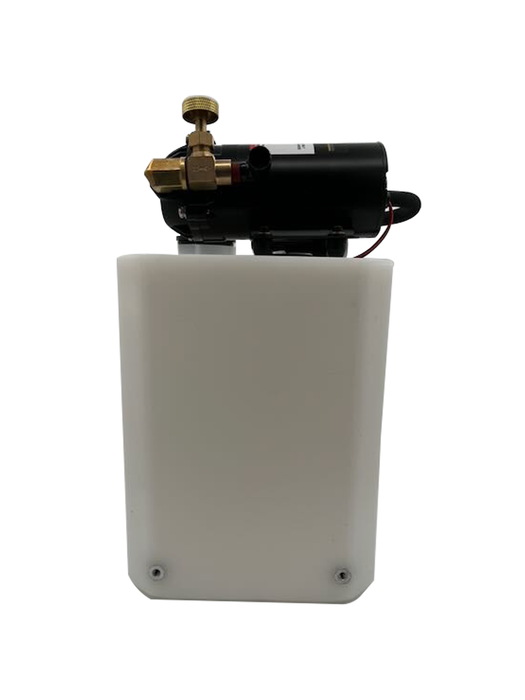

Smoke System 3.5V (Vertical Tank)
- Rated for 18g
- 12v or 24v power ok
- Suitable for all aircraft
- Pump flow: 1.8 +/- GPM
- Tank capacity: 3.5 gallons
- Oil spray rate: 0.8 +/- GPM
- Total run time: 5+/- minutes
- Typical installation time: 1 day
- Ready for External Fill Kit option
- Turbine and Jet ordering information
Engineered for continuous inverted flight
Strong monolithic tank construction (no seams)
See successfully earned FAA Field approvals here
INCLUDES EVERYTHING NEEDED:
- All hardware
- All electronics
- Suction hose (3')
- Pressure hose (10')
- Stainless steel hose (3')
- 12v pump (& 24v to 12v converter)
- Visual step by step instructions link
Note: Fasteners for attaching brackets to aircraft not included.
- Pump height: 4"
- Vertical Tank: 11" x 8.5" x 13"
- Pump does not mount to vertical tank
- Smoke System (full): 50 lbs
- Smoke System (empty): 20.5 lbs
Note: Weight increases if option(s) are added.
