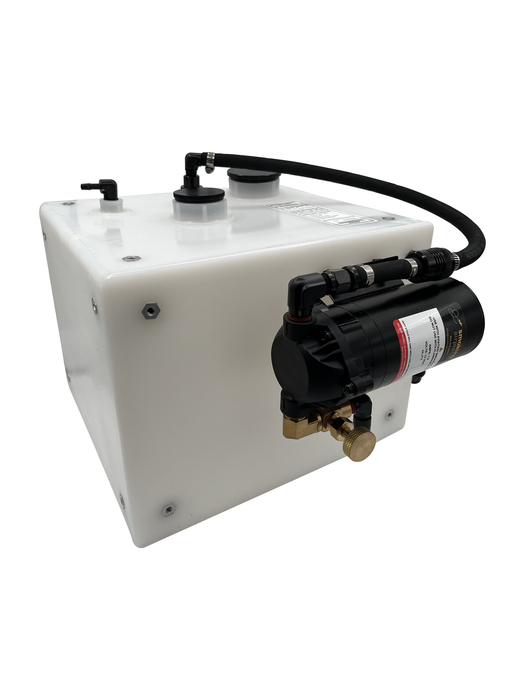

5.5 US Gallon Smoke System

$899.00
  • Suitable for all aircraft
  • Turbine and Jet ordering information
  • Engineered for continuous inverted flight
  • Rated for 18g
  • 12 or 24 volt DC available
  • Pump flow is approximately 1.8 gpm
  • Smoke oil level is visible (tank is transparent)
  • Oil tank capacity: 5.5 US gallons
  • Approximate gallons of oil used per minute: 0.8
  • Approximate total run time: ~8+ minutes
  • Top or side mounted oil pump available
  • Typical installation time = 1 day (no welding necessary)
  • See successfully earned FAA Field approvals here

INCLUDES:

  • All hardware for complete installation
  • All electronics for complete installation
  • 10 feet of pressure hose
  • 36" of P.T.F.E lined Stainless steel hose with 2 easy install hose ends.
  • Complete visual step by step instruction manual

DIMENSIONS:

  • Tank - horizontal: 13″ x 12″ x 12"
  • Tank - vertical: 13″ x 10″ x 14″
  • Add pump dimensions: 4"
  • Mounting bracket: 1.5" length  x .125 " thickness

Note: Tank dimensions do not include pump dimensions (because pump can be installed on tank side of your choice). Dimension above are represented as (L•W•H).

WEIGHT:

  • Oil tank empty: 16 lbs
  • Oil tank full: 60 lbs
  • Oil pump: 5 lbs
  • Components: 3 lbs
  • Smoke oil: 44 lbs
  • Total weight (incl smoke oil): 63 lbs

Note: The weights shown are based on the SA-201 single injector, smoke system kit; including mounting hardware, oil pump w/bracket, flop tube, vent system, oil mixture valve, etc. Weights may vary with addition or subtraction of components.
